BendPak XPR-9S 9,000-lb Symmetric Lift Review: The Industry Benchmark

BendPak has been building lifts since 1965 and is the most recognized name in the category, with a dealer network that installs, inspects and stocks parts across the country. That network is a large part of what the price buys, and it is the reason BendPak lifts hold value on the used market better than imports do.

The XPR-9S is the entry point to the clear floor XPR family: 9,000 lb capacity, symmetric swing arms, a 2HP single phase 220V power unit, 69 in of rise and 112 in between the columns, listed by ALI and ETL, with dual-synchro equalization and a 5-year structural, 2-year hydraulic warranty. Price is around $4,799.

Read that spec sheet next to the price and the tension is obvious. It is the least capable lift in a family where the 10,000 lb asymmetric XPR-10AS costs $4,035. The XPR-9S has to justify itself on layout and on brand rather than on numbers, and for some garages it does.

Most 2-post lifts run a pair of crossover cables to keep the two carriages at the same height. The cables stretch, tension drifts, and an owner who never adjusts them ends up with one side an inch high, which loads the arms unevenly and wears the slide blocks. Checking and retensioning is the maintenance job people skip.

BendPak's dual-synchro system uses two independent equalization circuits so the carriages stay level as the cables settle, and it holds level under an off-center load, which is what happens every time an engine comes out. The effect is less adjustment over the life of the lift and less chance of one carriage running away from its partner.

It is not a safety system. The mechanical locks are the safety system, and they engage in both columns as the carriage climbs regardless of what the cables are doing. Dual-synchro is a longevity and accuracy feature, and it is the strongest technical argument for paying BendPak prices.

The arms are symmetric, so the vehicle sits centered between the columns with weight split evenly. That is the stable arrangement, it makes pad placement on a unibody car straightforward, and it is why body shops still specify symmetric lifts. The trade is door clearance: with the car raised, the front doors hit the columns.

9,000 lb covers sedans, SUVs, half-ton pickups and a three-quarter-ton unloaded. A loaded diesel crew cab is outside it. 69 in of rise is 4 in less than the XPR-10AS gives, which a tall mechanic will notice under a truck.

The compensation is height. Overall height is 143 in, or 11 ft 11 in, and the practical minimum ceiling is about 12 ft. That is 5 in less than the Challenger E10 wants, and it is the reason some garages end up here. Anyone with 11 ft 6 in should look at the XPR-10AS, which clears at that height.

Power is 2HP on 220V single phase with a dedicated circuit. Anchoring is into a minimum 4 in slab of cured 3,000 psi concrete, and BendPak's manual is specific about anchor embedment, torque and the shim limit under the base plates. Certified lifts are only certified when anchored the way the manual says.

BendPak dealers install, and on a lift at this price that is usually the right call. The installer stands the columns, anchors them, squares the beam, sets the cable tension, cycles the locks and leaves a commissioning record. That record is what an insurer or an inspector asks for, and it removes the most common cause of a warranty dispute, which is an owner who anchored into a 3 in slab.

For an owner install, budget a full weekend, an engine hoist, a rotary hammer and a second person. The columns are heavy and the overhead beam is the part that goes wrong when someone works alone.

The BendPak XPR-10AS at $4,035 is the same brand, the same certification, the same dual-synchro equalization and the same lifetime frame coverage, with 10,000 lb instead of 9,000, asymmetric arms instead of symmetric, 73 in of rise instead of 69, and an 11 ft 6 in ceiling requirement instead of 12 ft. It costs $764 less. Unless symmetric arms are specifically wanted, it is the better purchase, and saying otherwise would be dishonest.

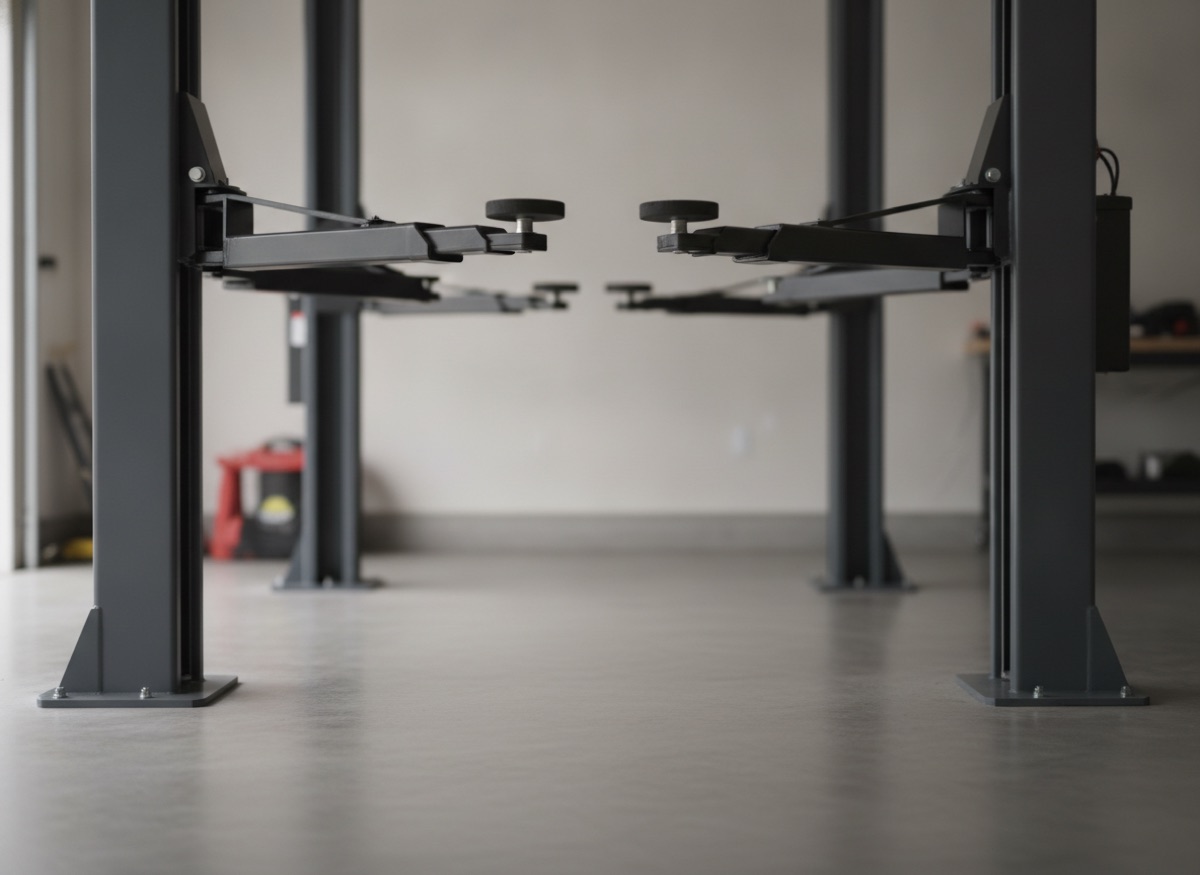

The XPR-10A at around $5,299 adds extended arms to the 10,000 lb package for $500 more than the 9S, which suits owners of long wheelbase trucks and nobody else.

The Challenger E10 at around $4,299 is 10,000 lb, asymmetric, ALI Gold Label, with 3 years of hydraulic coverage, for $500 less than the 9S. It needs 12 ft 5 in of ceiling.

The XPR-9S wins on one axis only: it is the certified BendPak that fits under a 12 ft ceiling with symmetric arms.

Buy the XPR-9S if symmetric arms are a deliberate choice, if the garage has 12 ft of ceiling and 220V, if the heaviest vehicle stays under 9,000 lb, and if the BendPak dealer relationship, the ALI listing and the 5-year structural warranty together are worth a premium. It is a lift that will still be working in twenty years and will still have parts available.

Skip it if capacity or rise matter, because BendPak's own XPR-10AS delivers more of both for $764 less. Skip it if the doors need to open with the car up. Skip it if the budget is the constraint rather than the brand, since the ALI listed Triumph NT-9 is a 9,000 lb symmetric lift at around $3,299, or $1,500 less, and what it gives up is dual-synchro equalization and the dealer network rather than the certification.
