BendPak PL-6000 Review: Premium 6,000-lb Parking Lift for Home Garages

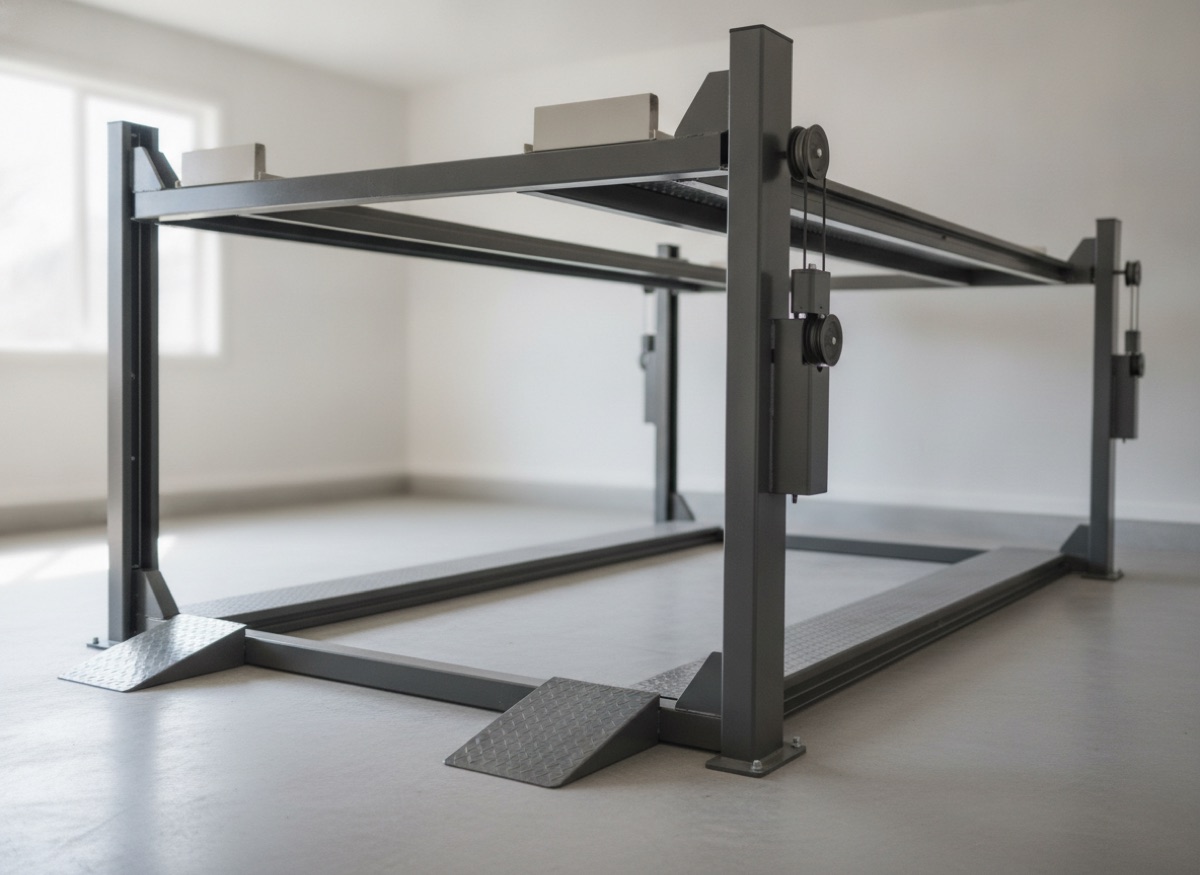

The PL-6000 is a single-platform parking lift: one hydraulic platform that carries a vehicle up so a second one can park underneath. BendPak rates it at 6,000 lb, which covers every sedan, coupe and compact crossover on the road and most mid-size SUVs. A Camry is about 3,400 lb, a Model 3 about 4,000 lb, a CR-V about 3,600 lb. A Tahoe at 5,600 lb is inside the rating but leaves little margin, and that is where the 7,000 lb PL-7000XR starts to make sense.

The platform is listed at 106 in long by 96 in wide with 84 in of usable drive-on width. Width is rarely the problem. A Corvette is 76 in wide at the body and an F-150 is about 80 in without mirrors, so both clear the rails. Length is the number to check against your wheelbase, because a parking lift only needs the tires on the deck and some overhang at each end is normal. Confirm your wheelbase against the platform with the dealer before ordering.

This is a storage lift, not a service lift. There is no open floor under the car for a transmission jack and the platform blocks access to the underbody. If you want to work on the car as well as park it, a 4-post lift is the better tool.

BendPak lists a minimum ceiling of 11 ft 6 in, which is 138 in, and a full rise of 72 in. Subtract one from the other and the vehicle on the upper platform gets 66 in of headroom at the minimum ceiling, less whatever a garage door opener or light fixture steals. A Camry is 57 in tall and fits with room to spare. A CR-V at 66 in does not fit at the minimum ceiling, and a Tahoe at 76 in needs a ceiling closer to 12 ft 8 in.

Underneath, the platform sits at 7 in when lowered, so its underside at full rise is roughly 65 in off the floor. That is enough for any sedan or sports car and for most compact crossovers. Two SUVs stacked on a PL-6000 is not realistic in a normal residential garage.

Floor space is simpler. The 96 in platform width plus columns fits a standard single bay, and the drive-on ramps add length at the entry end when lowered. Leave room to open the lower car's doors and walk around the columns. Garages with the door track running under the platform position need the track measured too, because the raised platform and the open door compete for the same air.

The lift ships at 2,100 lb in crated sections, so delivery is a liftgate freight truck and at least two people, and the platform pieces are not something one person moves. BendPak calls for professional installation and the shipping weight is why. Expect a full day for an experienced crew: anchor the columns plumb and parallel, assemble the platform on the floor, hang it on the carriages, route the hydraulic line, then adjust the equalizer cables so the deck travels level.

Concrete is the usual class requirement, 4 in of 3,000 psi slab with no cracks at the anchor points, and BendPak's manual gives the exact anchor pattern and torque. If your garage is on a post-tension slab or the floor is a 3 in pour from the 1970s, stop and get a contractor opinion before anyone drills.

Power is 220V single phase. In most homes that means an electrician, a new breaker and a dedicated run to the power unit, and it should be priced into the project along with the $600 to $1,000 that a two-person install typically costs. Budget the whole job at around $5,000 to $5,500, not the $3,899 sticker.

The PL-6000 is ALI/ETL certified, which means an independent lab verified it to the ANSI/ALI ALCTV standard and the model appears in the Automotive Lift Institute directory. That is the one thing on this spec sheet that competitors at this price do not offer. Triumph, Atlas, Forward and Challenger's CP-6000 all sell 6,000 lb parking lifts without it. Certification does not change the steel, but it does mean the 6,000 lb rating was proven with the standard's overload margin rather than stated by the manufacturer.

Mechanically, the lift holds its load on automatic locks that engage in the columns as the platform rises, so the hydraulics only do work during travel. Lowering means lifting off the locks, releasing them, then descending through a flow-controlled valve. BendPak also builds a manual lowering path into the power unit so a power outage does not trap the upper car.

The single hydraulic cylinder noted in the cons is a maintenance item, not a safety flaw. The locks carry the parked load, but the cylinder seals should be checked yearly along with cable tension and anchor torque, which is standard parking-lift upkeep.

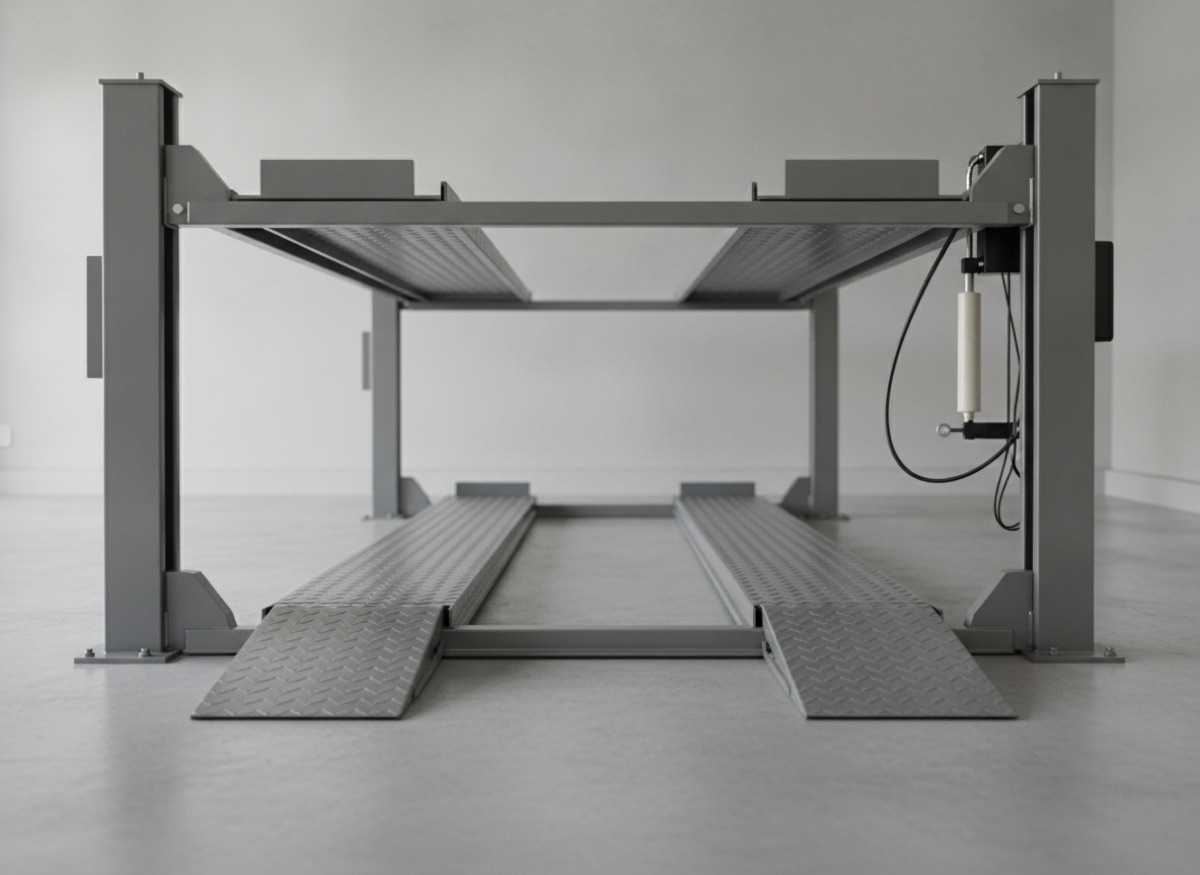

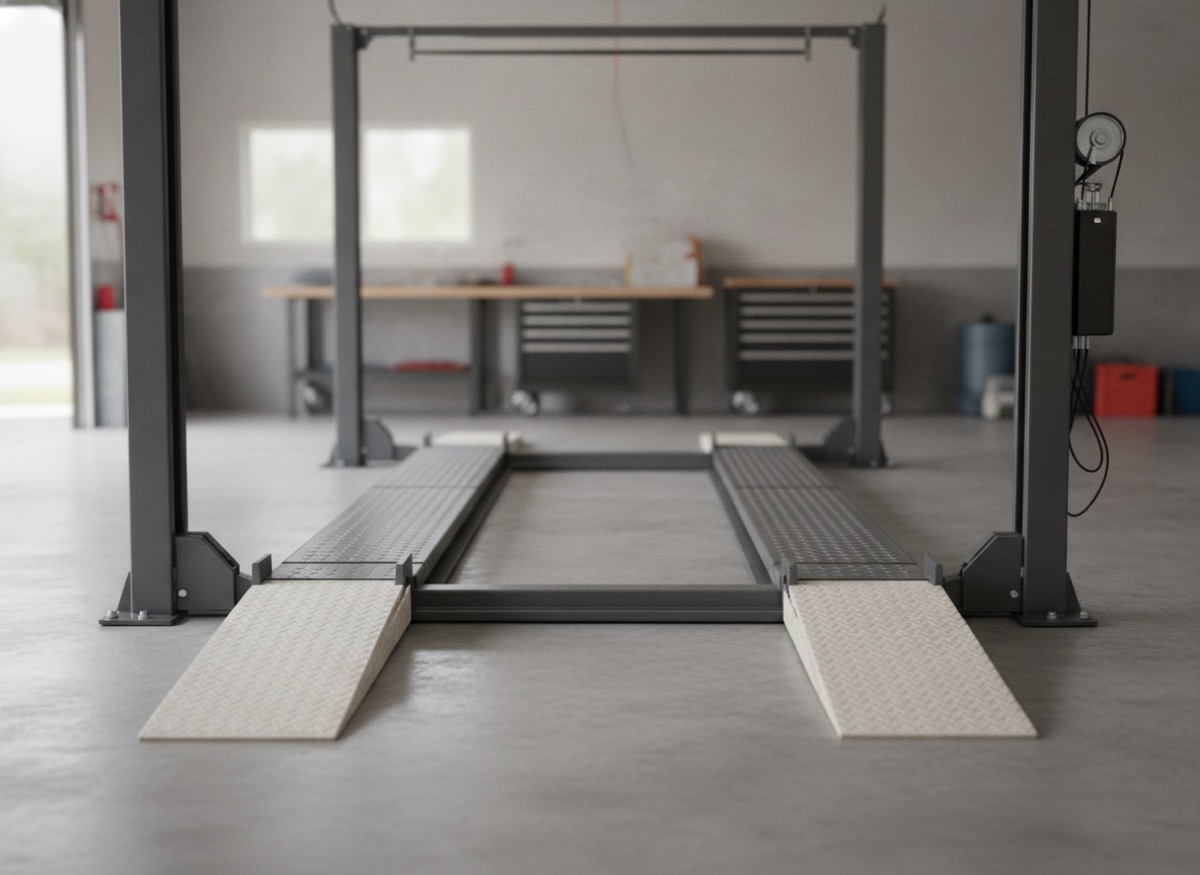

Inside BendPak's own line the choice is about ceiling and weight. The PL-6SR is the same 6,000 lb capacity with a 56 in rise and a 9 ft 6 in minimum ceiling, priced around $3,599. It is the answer for the common 9 to 10 ft residential garage, at the cost of only fitting low cars on both levels. The PL-7000XR adds 1,000 lb of capacity, a 118 in platform and the same ALI listing for around $4,499, but needs 12 ft of ceiling and more floor depth.

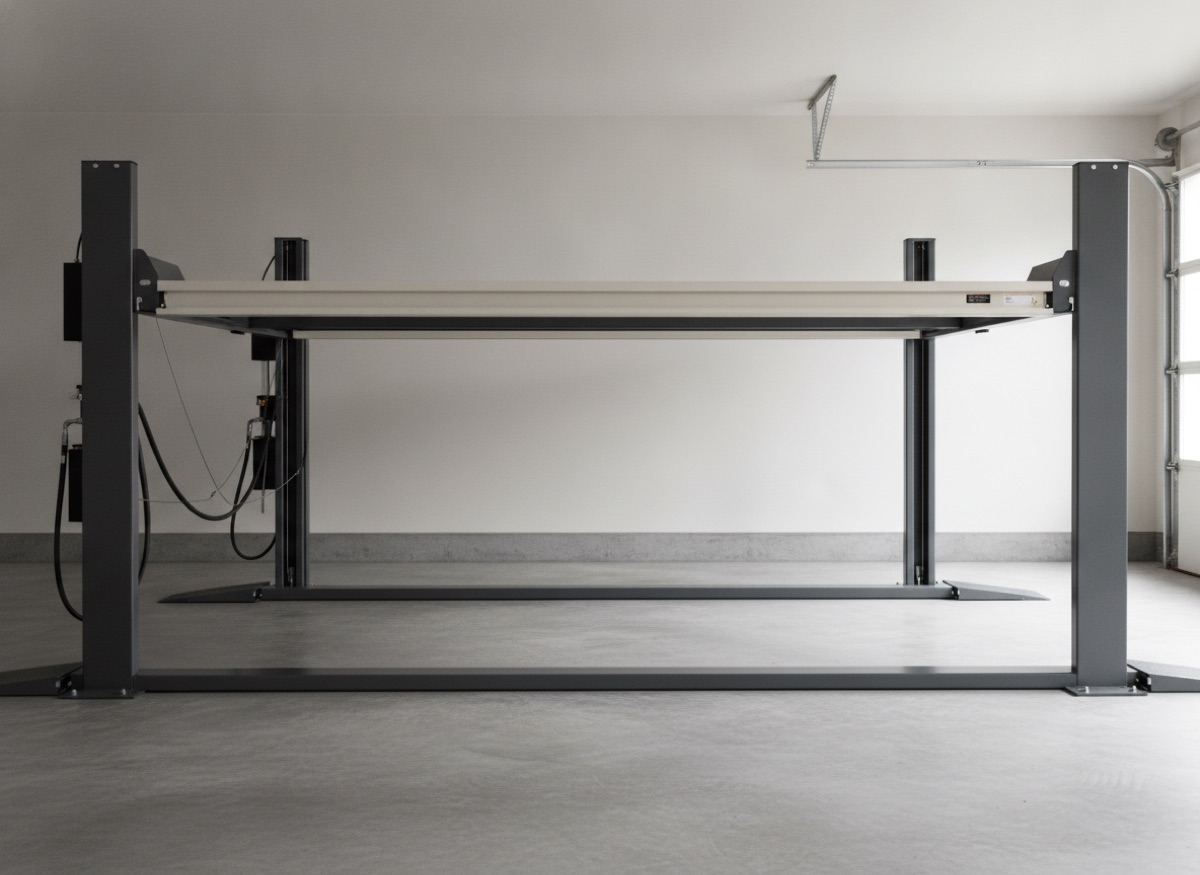

Against the Triumph NSP-8 the comparison is capacity versus certification. The Triumph is rated at 8,000 lb, has an 88 in drive-on width and costs around $4,299, so a heavy pickup on the upper deck is possible in a way it is not on the PL-6000. It is not ALI certified and its finish is thinner. If the heaviest thing you own is a mid-size SUV, the BendPak's certification and parts network win. If you are stacking a truck, the Triumph or the PL-7000XR is the honest answer.

The PL-6000 is the right lift for a household with two cars, one of them a sedan, coupe or sports car, and a garage with a ceiling of 11 ft 6 in or taller. It is also the one to buy if a permit office, HOA or insurer has asked for a certified lift, because it is the only 6,000 lb parking lift in this group that can produce the ALI listing. Buyers who plan to keep the house a long time get the most from it; the BendPak dealer network makes seals, cables and locks easy to source a decade from now.

It is the wrong lift for three groups. Anyone with a ceiling under 11 ft should look at the PL-6SR instead of trying to squeeze a full-rise lift into the space. Anyone whose upper vehicle is a full-size SUV or half-ton pickup needs the extra 1,000 to 2,000 lb of the PL-7000XR or the Triumph NSP-8, plus the 12 ft ceiling those require. And anyone who wants underbody access for maintenance should buy a 4-post service lift, since a parking platform gives you none.
